Caratteristiche

Specificazioni

Type: Electric vehicle motor controller

Peak current: 280A

Rated input voltage: 72V

Auxiliary low voltage range: 6 ~ 16 V DC

Applicable motor: PMSM / ACIM

IP grade: IP67

Efficiency: â‰¥98%

Ambient temperature: -40 â„ƒ - 65 â„ƒ

Torque respond time: < 5ms

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: carton, plywood crate

Supply Ability: 10000 Piece/Pieces per Month

Descrizione di prodotto

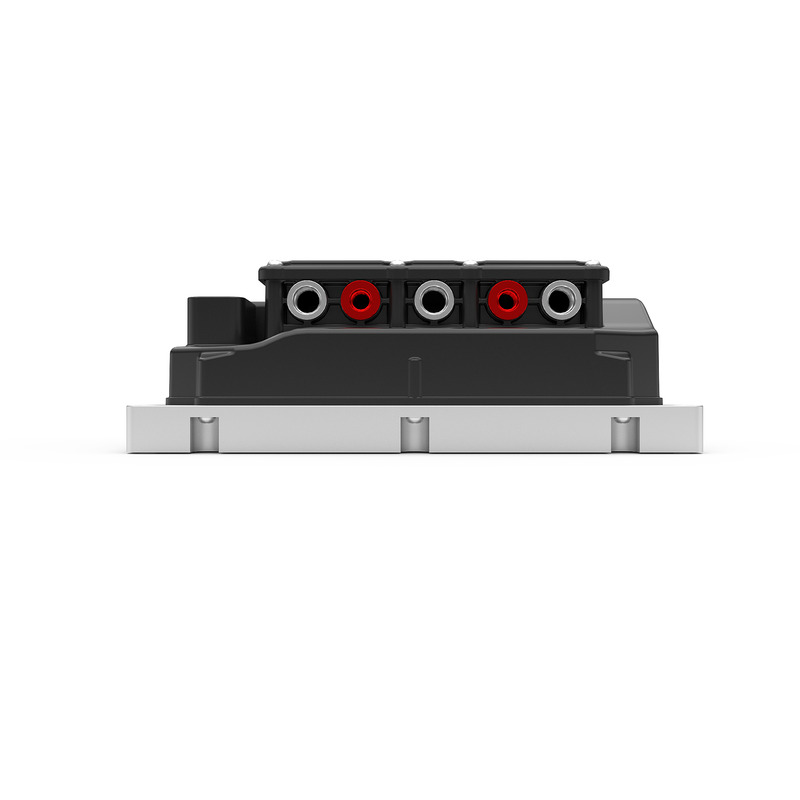

Electric Motorcycle motor controller-D03 frame
Brand: GTAKE
Certificate: CE, RoHS

Model	Applicable motor	Input voltage range	Peak current	Low-Voltage range
KTZ(KYS)07H28ZMA**	PMSM/ACIM	40V DC ~ 90V DC	280A @ 3s	6 ~ 16V DC

Advantages

Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE EV motor controllers are equipped with advanced features, some of which are listed as below:

01	All GTAKE electric vehicle motor controllers meet the standards GB/T 18488.1, GB/T 2423.17, GB14023.4, and GB/T 17619.4.
02	Quick torque respond time: <5ms; Torque control accuracy: ±5%.
03	To gain higher power density and overload capacity, SMD MOSFET and aluminum plate cooling technology are adopted
04	Big power density, compact size and light weight. On the premise of ensuring the power, this can effectively reduce the weight of vehicle body.
05	Rational placement, delicate material selection, and advanced manufacturing engineering make the IP grade up to IP67 with the lightest weight.
06	GTAKE EV/HEV drives support terminal control and CAN bus control. The CAN node hardware connection can be realized by GTAKE drives directly, with the transmission baud rate up to 1 Mbps, real-time, safe and reliable.
07	Different filtering tactics in ACR make the output torque smoother with quick response, improving the comfortability for driver and passengers dramatically.
08	GTAKE motor controllers are equipped with capability of protection on short-circuit, over-current, over-voltage, overheating, over-load, and encoder disconnection, etc. Likewise, the battery protection can be well programmed and the controller can adjust feedback energy greatly.
09	Ambient temperature: -40°C~65°C;

Features

Power Supply
Rated input voltage	48V / 72V DC
Input voltage range	40V DC ~ 90V DC
Auxiliary low-voltage power supply	6V DC ~ 16V DC

Output Data (U, V, W)
Output peak current	280A
Duration	3 s
Output frequency range	0~600 Hz

Applicable Motor
Type	Synchronous / asynchronous motor
Position sensor	Magnetic encode (TLE5012B E1000 or AS5047D)
Temperature sensor type	KTY84 / PT100 / PT1000 / NTC
Temperature sensor channel	1

CAN Communication
Terminal resister	Optional
Protocol	Customized

Mechanical parameter
Weight	~ 2 kG
Dimension W×H×D(mm):	W×H×D(mm):223×134×77

Ambient
Vibration	GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011
Humidity	Relative humidity 5% - 95 %. No condensation
Ambient temperature	-40ºC - 65 ºC
Altitude	0 - 2,000 m
Altitude	Rated output current derated 1% every 100 m above 1,000 m
Storage temperature	-40 - +85 ºC
Efficiency	≥98 % at the rated
IP grade	IP 67
Cooling method	Natural cooling

Applications

GTAKE e-motorcycle controller offers speed control and torque control, adaptable to sorts of types of motorcycle, 2~3kW moped and 6 ~ 8kW motorcycle.


6kW electric motorcycle		3kW electric mopeds		electric motor tricycle


Multistage reducer		one-stage reducer		More …

Why choose GTAKE electric vehicle motor controller?

In the trend of advocating smart and simple automation, environmentally friendly products, value-added solutions, GTAKE, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.

Production

In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.

GTAKE VS Other brands

Performance	Common brands	GTAKE
Applicable motors	Synchronous motors	Asynchronous /synchronous motors
Power consumption *1	0.133 kWh/km	15.7 L / 100 km
Peak torque *²	45 Nm	38 Nm
Mileage with 1 passenger *³	91 km	100 km
Mileage with 2 passengers *⁴	65 Nm	71 Nm
Acceleration	0.5 m/s²	1.11 m/s²
Slope distance *⁵	> 20 cm	< 8 cm
IP rating	IP 65	IP 67
Ambient temperature	-10-40ºC	-40-65ºC
Customized features (software and/or hardware)	Unprocurable or no experience	Procurable with rich experience

Note:

*¹	Test at urban comprehensive road condition with 4kW (72V) mid drive motor.
*²	Test with 15kW, 108V mid drive motor
*³	1.5kW 72V Wheel motor (BLDC)
*⁴	1.5kW 72V Wheel motor (BLDC)
*⁵	Anti-slip function test. Test condition: 25% slope
All of this data is collected from actual projects.

Packaging and logistics

All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult GTAKE logistics department for worldwide shipment services.

* Low-power inverters are packed in cardboard box, and others are in plywood cases.

* Plenty of transportation procurable globally in accordance with customer demand or GTAKE expertise.

GTAKE EV motor controllers are able to adapt to electric light EV, passenger car, Hybrid EV, electric bus, logistics van, electric motor cycle, electric boat, electric crane, digger and etc.

Please leave us an inquiry for more details of our EV controller, like information of the model numbers, technical data, applicable application, pricing, warranty terms, lead time and/or customized functionality.
